StarTech.com USB-C Power Tester Digital Multimeter 240W
Description
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.
Compact Form Factor - the USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential addition to any IT Pro's toolkit.

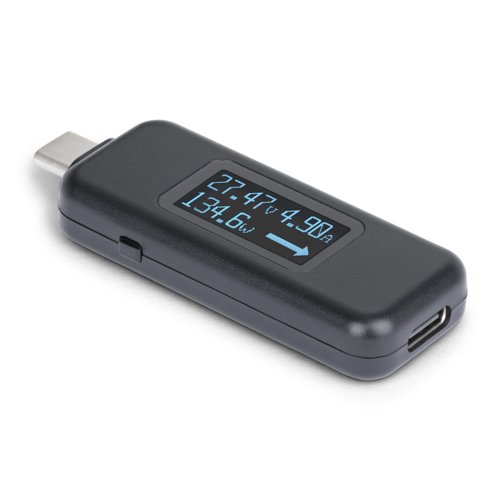

Streamline Power Diagnostics - this USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility - supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
Specifications
Lead Time
1
Brand
StarTech.com
Categories
Electrical & Lighting
Category
Detectors & Testers
Colour
Black
Connector A
1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps)
Connector B
1 - USB 3.2 USB Type C (10 pin, Gen 2, 10 Gbps)
Dimensions (WxDxH)
57x23x10mm
Form
Power Tester
Input current
50mA - 6.5A
Input Voltage
4.5-50V
Manufacturer
StarTech.com
Material
Polycarbonate
Output current
50mA - 6.5A
Output voltage
4.5 - 50V
Power Delivery
240w
Power Source
Bus Powered
Type
Detectors & Testers
Warranty
2 Year Warranty
Weight
12g
